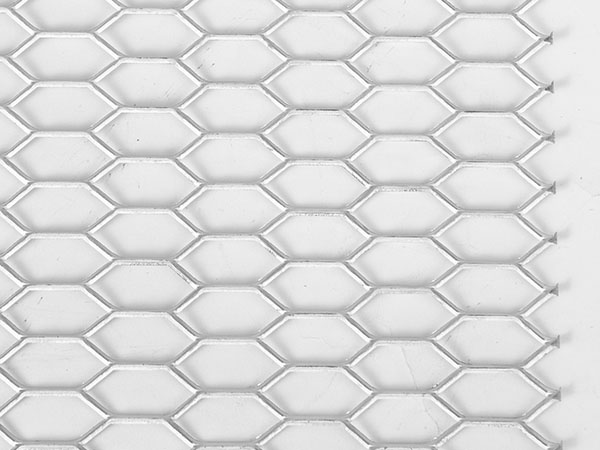

expanded metal

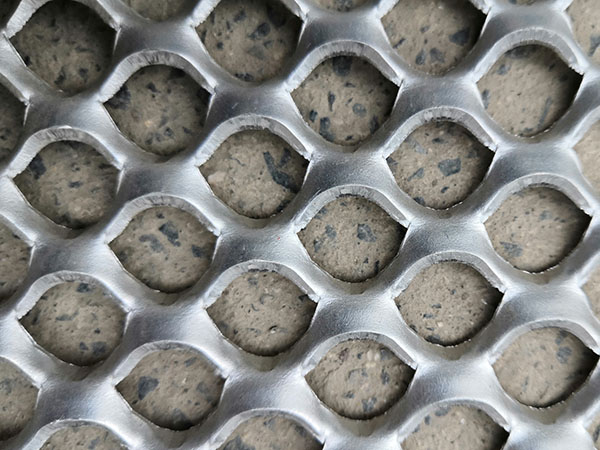

expanded metal

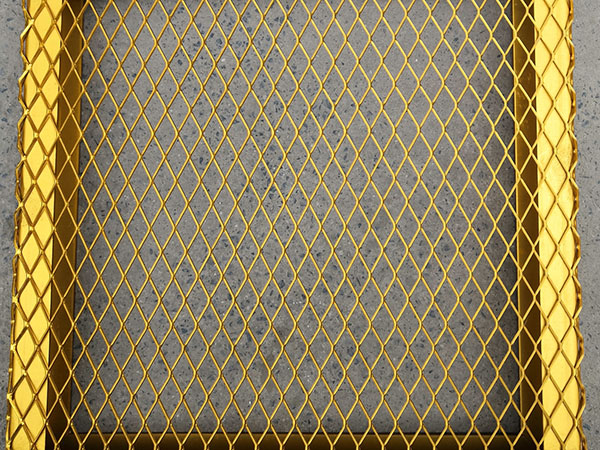

expanded metal

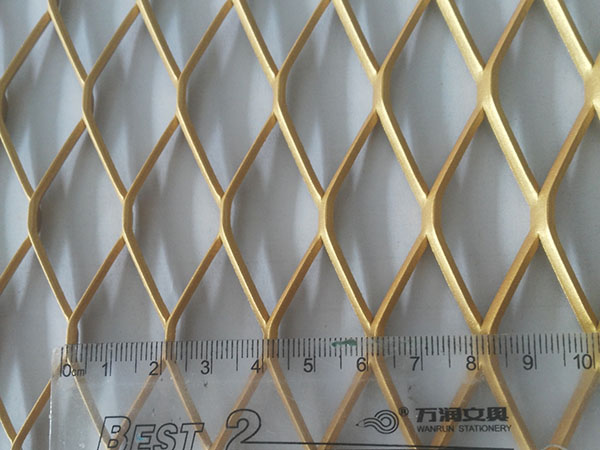

expanded metal

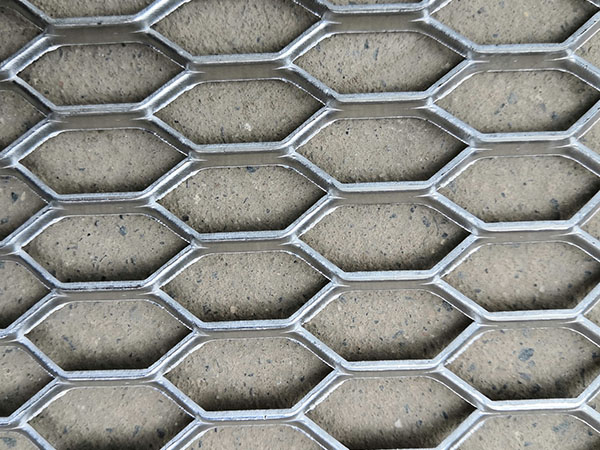

expanded metal

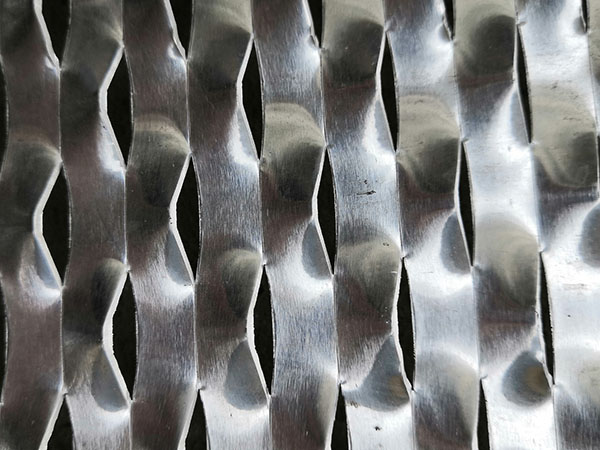

expanded metal
expanded metal
Expand metal mesh
Material
Stainless steel,thin low carbon steel,brass plate,
Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate.
Manufacturing Process
Expanded metal sheet
expanded
Expanded metal sheet is made by first creating multiple slits in the sheet, and then stretching the sheet. The stretching creates a unique diamond pattern opening with one of the strands protruding at a slight angle. These raised strands can be flattened later in the process if desired. As you can see this process creates no waste (thus keeping down production costs) and it can add structural strength to the product.
Specification
Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
hole shape:
Diamond,square hole,scale hole, etc.
Packaging
1.On pallet with waterproof cloth,the biggest width is 1500mm
2.In wooden case with waterproof paper
3.In carton box
4.In roll with woven bag,the biggest width is 3000mm
5. In bulk or In bundle
Specification :
Sheet Thickness | Distance Short (mm) | Distance Long (mm) | Strand Width (mm) | Width (m) | Length (m) | Weight (kg/m²) |
0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
